In the machine tool industry, "5-axis simultaneous machining" is often regarded as a synonym for high-end manufacturing. However, many people still have a limited understanding of its specific principles and value. What exactly is a 5-axis simultaneous machining center? How does it differ from ordinary 3-axis or 4-axis machines? And what machining challenges can it solve? This article will break down the core information of 5-axis simultaneous machining centers from basic concepts to practical applications.
I. First, Clarify: What is "5-Axis Simultaneous Machining"?
To understand 5-axis simultaneous machining centers, it is first necessary to clarify the meaning of "axis" — the "axis" of a machine tool refers to an independent degree of freedom that drives the workpiece or tool to move. Different axes correspond to movements in different directions; the more axes a machine has, the greater its motion flexibility.
Common 3-axis machines (such as ordinary CNC milling machines and lathes) typically have three linear axes: X, Y, and Z. The X-axis corresponds to left-right movement, the Y-axis to front-back movement, and the Z-axis to up-down movement. The limitation of such machines is that they can only machine the "front side" of a workpiece through the combination of the three linear axes, without the ability to adjust the angle of the workpiece or tool.
4-axis machines add one rotational axis (usually the A-axis or C-axis) to the 3-axis configuration: the A-axis refers to rotation (swinging) around the X-axis, while the C-axis refers to rotation (spinning) around the Z-axis. For example, a 4-axis milling machine with a rotary table can drive the workpiece to rotate via the C-axis, enabling continuous machining of the workpiece's "side surfaces". However, it still cannot adjust angles in two different directions simultaneously.
A 5-axis simultaneous machining center, on the other hand, adds two independent rotational axes (common combinations are A-axis + C-axis or B-axis + C-axis; the B-axis refers to rotation around the Y-axis) to the three linear X, Y, and Z axes. Crucially, these five axes can move and coordinate simultaneously. In simple terms, the tool or workpiece can move or rotate in five different directions at the same time, allowing machining of the workpiece at "any angle and any position".
The key lies in the term "simultaneous": it is not a simple superposition of five axes, but rather the ability of the five axes to adjust their speed and direction in real time according to machining requirements. For instance, when machining complex curved surfaces, the tool can maintain a perpendicular angle to the workpiece surface while moving along the curved path — a capability beyond the reach of 3-axis or 4-axis machines.
II. Core Advantages of 5-Axis Simultaneous Machining Centers: Solving "Unmachinable or Poorly Machinable" Problems of Traditional Machines
Compared with 3-axis and 4-axis machines, 5-axis simultaneous machining centers excel in three core scenarios, which is why they have become "indispensable equipment" for high-end manufacturing.
1. Complex Shaped Parts: Multi-Surface Machining with One Clamping, Reducing Errors
When traditional 3-axis machines process complex shaped parts (such as aircraft engine blades and mold cavities), multiple clamping operations are often required. For example, the front side of the workpiece is machined first, then the workpiece is disassembled, repositioned, and clamped again to machine the side or back surfaces. However, each clamping operation introduces "positioning errors", and after multiple clampings, the overall precision of the part drops significantly, even failing to meet tolerance requirements.

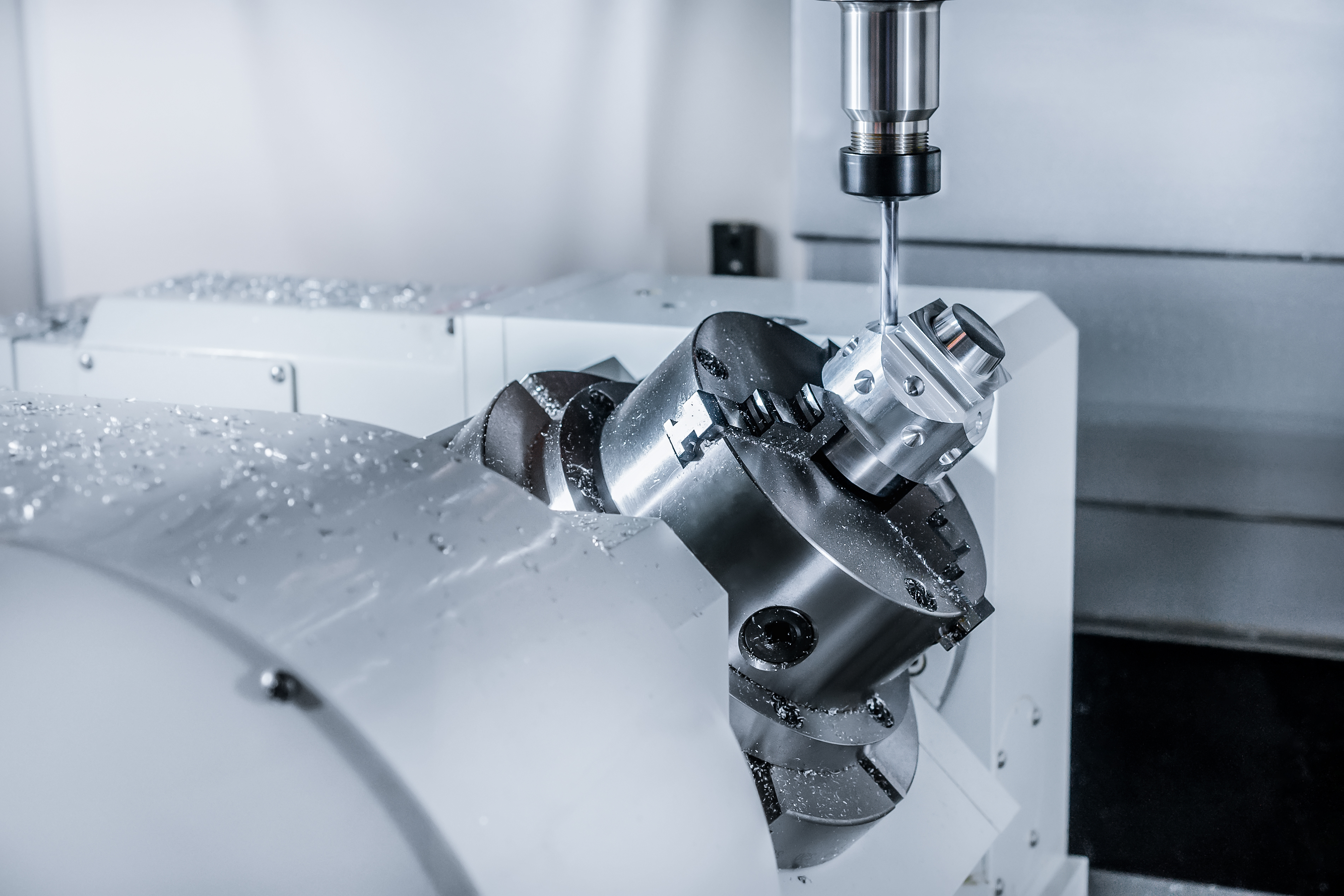

A 5-axis simultaneous machining center can achieve "multi-surface machining with one clamping" through the adjustment of two rotational axes: simply fix the workpiece on the table, and use the swing of the A-axis (or B-axis) and rotation of the C-axis, combined with the linear movement of the X, Y, and Z axes, to complete all-round machining of the workpiece's "front, sides, inclined surfaces, and back". For example, when machining aircraft engine blades, a 5-axis machine can adjust the tool to move along the complex curved path of the blade while maintaining the optimal cutting angle, eliminating the need for secondary clamping. This not only avoids positioning errors but also increases machining efficiency by more than 30%.
2. Deep Cavity and Narrow Slot Parts: Avoiding Tool Interference, Improving Machinability
When machining deep cavity or narrow slot parts (such as deep cavity mold cavities and slender holes in medical devices), traditional 3-axis machines are prone to "tool interference". Since the tool can only move linearly, when machining the side or inclined surfaces inside a deep cavity, the tool holder may collide with the cavity wall, resulting in tool damage or part scrapping.
A 5-axis simultaneous machining center can adjust the tool angle via the rotational axes to avoid interference areas. For example, when machining an inclined surface on the side of a deep cavity, the A-axis can swing the tool to extend into the cavity at an inclined angle while the Z-axis moves downward. This ensures the tool reaches the machining position without the holder touching the cavity wall. Additionally, 5-axis machines can use "short tools" for deep cavity machining — traditional 3-axis machines require long tools to reach the bottom of deep cavities, but long tools have poor rigidity and are prone to vibration. In contrast, 5-axis machines can adjust the angle to allow short tools to cut from the side, improving machining stability and surface quality.
3. High-Precision Curved Surface Machining: Real-Time Tool Posture Optimization, Enhancing Surface Quality
For parts requiring high-precision curved surfaces (such as optical lens molds and automotive panel molds), the "cutting angle" between the tool and workpiece surface changes with the curve when processed by traditional 3-axis machines. For example, when machining an arc surface, the tool may tilt and then become perpendicular, leading to "tool marks" or uneven surface roughness on the machined curve.
A 5-axis simultaneous machining center uses a "real-time tool posture optimization" function. During machining, it adjusts the tool angle via the two rotational axes according to the curvature changes of the surface, ensuring the tool always maintains the "optimal cutting angle" (usually perpendicular or at a specific inclined angle) to the workpiece surface. For example, when machining the spherical surface of an optical mold, the tool of a 5-axis machine can rotate around the center of the sphere while moving along the spherical path, maintaining a consistent cutting angle. The surface roughness of the machined sphere can reach below Ra 0.8μm, eliminating the need for subsequent polishing and significantly reducing the machining process.
III. Key Components of 5-Axis Simultaneous Machining Centers: More Than "Two Extra Axes" — The Core Lies in "Coordinated Control"
Many people mistakenly believe that a 5-axis simultaneous machining center is just a "3-axis machine with two extra axes". In reality, its technical core lies in the "ability to control five axes in coordination", which requires the cooperation of key components:
High-Precision Rotational Axis Mechanism: The precision of the two rotational axes (A/B/C axes) directly determines the overall precision of 5-axis machining. Typically, the positioning accuracy of the rotational axes is required to be within ±5 arcseconds, and the repeat positioning accuracy within ±3 arcseconds. To ensure stability, rotational axes often adopt a "direct drive torque motor" or "harmonic reducer + servo motor" structure to minimize transmission backlash.
High-Performance CNC System: 5-axis simultaneous machining has extremely high requirements for the computing power of the CNC system. It needs to calculate the speed, acceleration, and position of the five axes in real time to avoid motion conflicts between axes. Currently, mainstream 5-axis CNC systems (such as Siemens 840D sl and FANUC 31i-B) are equipped with "5-axis interpolation algorithms" and "dynamic error compensation" functions, which can real-time correct errors caused by mechanical backlash and temperature changes.
Rigid Structural Design: During machining, the five axes of a 5-axis simultaneous machining center move simultaneously, so the rigidity requirements for the machine body are much higher than those of 3-axis machines. Therefore, the machine body is often made of "integral cast iron" or "welded steel structure + aging treatment" to reduce vibration during movement. High-precision ball screws and linear guides are also used to ensure smooth motion and long-term precision retention.
IV. Which Industries Need 5-Axis Simultaneous Machining Centers? Not "The Higher-End, The Better" — Choose Based on Actual Needs
Despite their outstanding advantages, 5-axis simultaneous machining centers are not required for all machining scenarios. They are mainly suitable for industries with high requirements for "precision, complexity, and efficiency":
Aerospace Industry: Machining complex parts such as engine blades, casings, and frames. These parts are often made of difficult-to-cut materials such as titanium alloys and superalloys, with extremely high precision requirements (tolerance within ±0.005mm). They must rely on 5-axis simultaneous machining to achieve one-clamping processing.
Mold Manufacturing Industry: Machining complex cavities and curved surfaces of large plastic molds and stamping molds. 5-axis simultaneous machining reduces the number of clamping operations, improves mold surface quality, and shortens mold manufacturing cycles.
For scenarios involving the machining of simple flat surfaces or ordinary shaft parts (such as bolts and flanges), 3-axis or 4-axis machines are sufficient. There is no need to blindly choose a 5-axis simultaneous machining center — after all, the purchase and maintenance costs of 5-axis machines are much higher than those of ordinary machines. Rational decision-making means choosing based on actual needs.
Conclusion: The Core Value of 5-Axis Simultaneous Machining Centers is "Breaking Machining Limitations"
In simple terms, the core value of 5-axis simultaneous machining centers is not "showcasing technology", but breaking the machining limitations of traditional machines: they can process complex parts that 3-axis and 4-axis machines "cannot machine", solve problems such as "large errors from multiple clampings" and "tool interference", and improve the machining efficiency and quality of high-precision parts.
Understanding 5-axis simultaneous machining centers does not require memorizing complex technical parameters, but rather clarifying "what problems they can solve". If your machining scenarios face pain points such as "difficult clamping of complex parts", "low precision of curved surface machining", or "easy interference in deep cavity machining", then a 5-axis simultaneous machining center may be the key equipment to solve these problems. Of course, the final decision to choose one should also consider your specific part requirements and budget — after all, "the most suitable one is the best one".
